3Kva 24V 40A Pv Off Grid Hybrid Solar Inverter

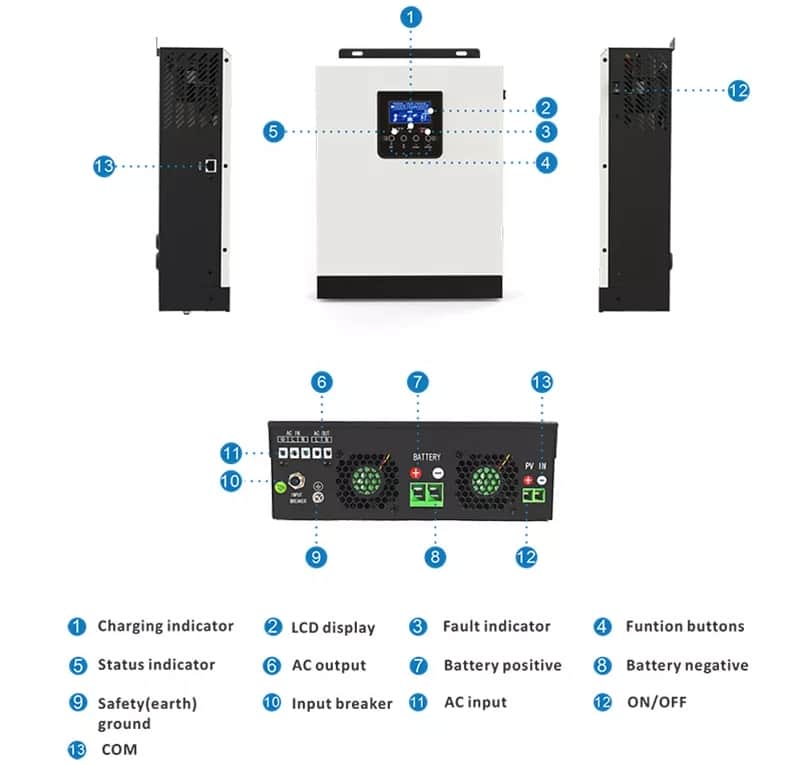

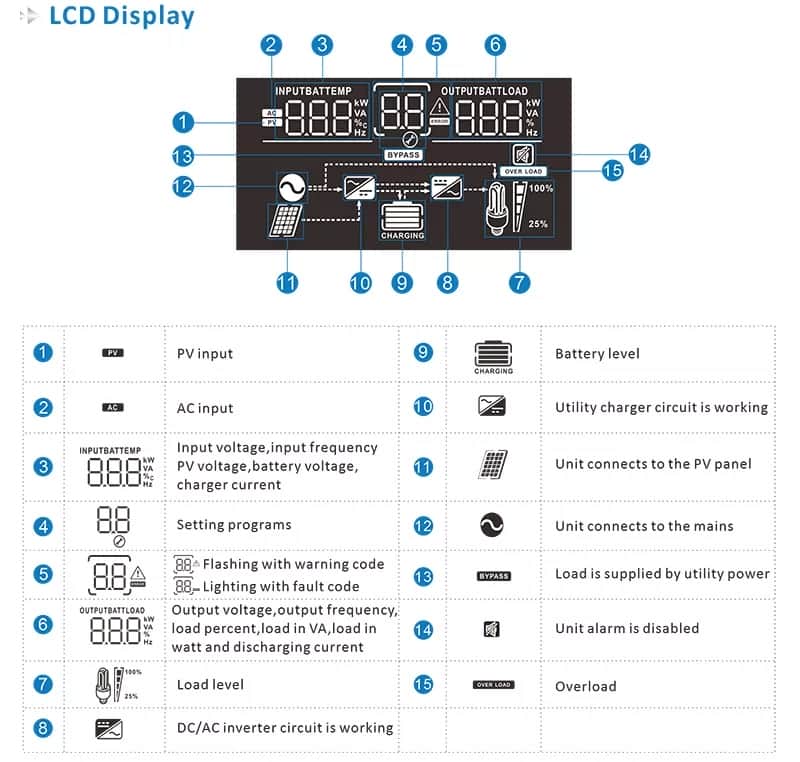

This all-in-one 3KVA hybrid inverter combines a pure sine wave inverter, 40A MPPT charge controller, and automatic transfer switch in a single unit. Designed for 24V battery systems, the inverter delivers 3000W continuous power (6000W surge) with 90% efficiency. The integrated MPPT charge controller handles up to 150V PV input and 40A charging current, compatible with lead-acid and lithium batteries. Features include: LCD display for system monitoring, configurable charging parameters, and generator start function. The inverter automatically switches between solar, battery, and grid/generator power sources with <10ms transfer time. Protection features include overload, short circuit, over-temperature, and deep discharge protection. With dimensions of 430x220x130mm and weighing 12kg, the unit is compact enough for small installations. Includes 2-year warranty and supports parallel operation for expanded capacity. Ideal for cabins, RVs, or backup power systems up to 3KVA. The inverter’s hybrid capability allows grid charging when solar is insufficient while prioritizing solar power when available. Certified to IEC 62109 safety standards for off-grid inverters.
